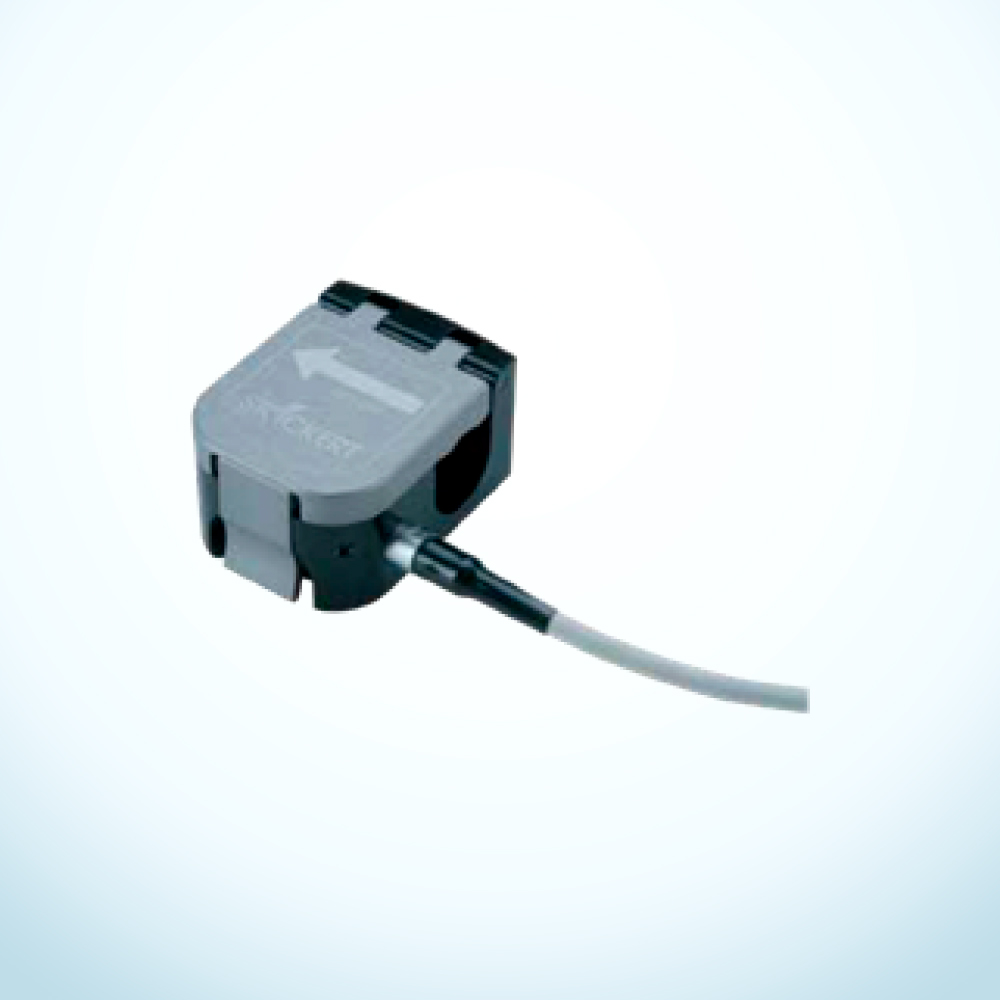

The total flow can be measured independently and precisely by the Stöckert Flow Sensor thus ensuring an increase in safety during extracorporeal perfusion.
• Flow sensors are clipped around the outside of standard PVC tubing to provide non-invasive flow measurements.
• The integrity of non-thrombogenic surfaces is maintained.
• The Stöckert Flow Sensor is intended for use with blood and saline solutions.
| Technical data | |
| Tubing size | ID. 3/8 in. |
| Bidirectional low | Resolution 5 ml/min |
| Accuracy of the measured values | Zero stability 12 ml/min |
| Ultrasonic frequency | 1.8 MHz |
| Wall thickness 3/32 in. | OD. 9/16 in. |
| Maximum flow 10 L/min | |
| Sensitivity ±5 % | Δ 15 ml/min |
